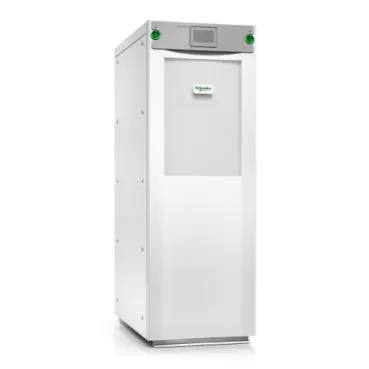

| Presentation | Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 30 kW |
| Rated power in VA | 30 kVA |
| Battery type | Internal modular battery VRLA |
| Provided equipment | Dust filter Installation manual Integrated network management Start-up service EcoStruxure Ready |
| Efficiency |
|
|---|---|
| Battery voltage | 480 V |
| Discharge battery voltage | 384 V |
| Max current discharge | 81 A |
| Battery power in VAH | 0 VAh runtime |
| Extended runtime | 0 |
| Redundant | No |
|---|---|
| Product or component type | Uninterruptible power supply (UPS) |
| Colour | White |
|---|---|
| Height | 148.5 cm |
| Width | 52.1 cm |
| Depth | 84.7 cm |
| Net weight | 200 kg |
| USB compatible | No |
| Network frequency | 40...70 Hz |
|---|---|
| Input voltage limits | 340...460 V 400 V |
| Maximum input current | 54 A |
| Max short time withstand current | 65 kA |
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | From 0.7 leading to 0.7 lagging without any derating |
| Input Power Factor at Full Load | 0.99 |
