General Information
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | SYH2K6RMI |
Manufacturer Website Address | |
Brand Name | APC by Schneider Electric |
Product Line | Symmetra |
Product Series | RM |

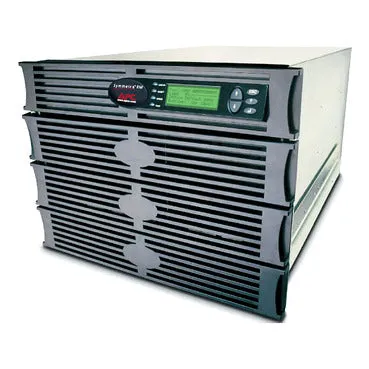

Product Name | Symmetra 2kVA Scalable to 6kVA Rack-mountable UPS |
Marketing Information | The first UPS with redundancy and scalability within a single chassis! |
Product Type | Double Conversion Online UPS |
Technical Information
Plug/Connector Type | Hard Wire 3-wire |
Receptacle Type |
|
Receptacle Detail |
|
Number of Battery & Surge Outlets | 10 |
Dataline Protection | RJ-45 |
Overload Protection | Yes |
Power Description
Load Capacity (VA) | 2 kVA |
Input Voltage | 220 V AC |
Output Voltage | 230 V AC |
Input Frequency | 60 Hz |
Output Frequency | 60 Hz |
Waveform Type | Sine Wave |
Management
Network Management | SNMP Manageable |
Alarm |
|
Bypass Switch | Internal |
Emergency Power OFF | Yes |
Interfaces/Ports
Modular Slots | 1 x SmartSlot |
Battery Information
Battery Characteristics | Spill-proof/Maintenance-free |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 12.60 Minute |
Backup/Run Time (Half Load) | 29.80 Minute |
Typical Battery Recharge Time | 4 Hour |
Environmental Conditions
Maximum Operating Temperature | 40°C |
Sound Emission (A-Weighted) | 60 dB(A) |
Thermal Dissipation | 590 BTU/h |
Physical Characteristics
Product Color | Black |
Form Factor | Rack-mountable |
Rack Height | 8U |
Height | 356 mm |
Width | 483 mm |
Depth | 730 mm |
Weight (Approximate) | 74.55 kg |
Miscellaneous
Additional Information |
|
Certifications & Standards | C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE |
